Главная страница ПродукцияУниверсальная машина тестирования

Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester

Сертификация
Китай Dongguan Liyi Environmental Technology Co., Ltd. Сертификаты
Китай Dongguan Liyi Environmental Technology Co., Ltd. Сертификаты
Просмотрения клиента
Мы получали машины вчера! Он был большим работать с вами! В приложении благодарственное письмо для вас и босса йоук, этого было подписано моим главным исполнительным директором.

—— Барабан Григорий

Мы имели хороший взгляд на glossmeter & мы любим чего мы видим. Результаты респектабельн близко к тарировке спецификации. Мы любим его.

—— Винодел Дэйв

Мы получали машину, вы для быть терпеливейший с мной в течение этого периода, я не имею пользу оно пока, но я уверен что он будет одобрен.

—— Jose Zikasky

Я люблю ваше обслуживание клиента, быстро реакцию и быть заботливым все время. Машина поставленная на времени. Вы.

—— Elizebath Roberts

Оставьте нам сообщение

Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester

Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester
Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester

Большие изображения :  Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester

Подробная информация о продукте:
Место происхождения: Гуандун, Китай
Фирменное наименование: LIYI
Номер модели: Лии
Оплата и доставка Условия:
Количество мин заказа: 1

Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester

описание
Сильная способность: Макс 500 кг Точность: ± 0,5%
Мотор тип: Мотор sevor Panasonic Гладить: 850 mm
Разрешение: 1/250 000 1/150 000 Источник питания: 1PH, AC220V, 50/60Hz
Диапазон скорости тестирования: 0.1~500mm/min Относительная ошибка силы: ± 0,5%
Дополнительная нагрузочная ячейка: 1,2,5,20,20,50,100,200 500 кг Операционная система: Компьютерная система Windows
Результат теста: Вывод с компьютера Максимальная грузоподъемность: 500 кг
Класс точности: 0,5 Диапазон скорости тестирования: 50 ~ 500 мм/мин
Мотор: Мотор инвертора AC
Выделить:

Max 500kg Universal Testing Machine

,

±0.5% Accuracy Tensile Tester

,

850mm Stroke Material Testing Machine

Liyi Computerized Electronic Universal Testing Machine Tensometer
Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester 0
Product Overview
The Liyi universal testing machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack, and fatigue cycling tests on various materials including metals, tape, composites, alloys, rigid plastics, films, elastomers, textiles, paper, board, and finished products.
Design Standards
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7
Technical Specifications
Model LY-1065 LY-1068
Accuracy Class 0.5 0.5
Max Load Capacity 500KG
Optional Load Cell 1,2,5,10,20,50,100,200,500kg
Resolution 1/250,000 1/150,000
Force Relative Error ±0.5% ±0.5%
Test Speed Range 0.1~500mm/min 50~500mm/min
Motor Panasonic Servo Motor AC Inverter Motor
Test Stroke (Contain Clamps) 850mm
Product Images

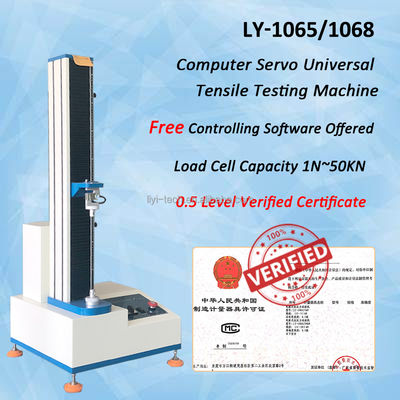

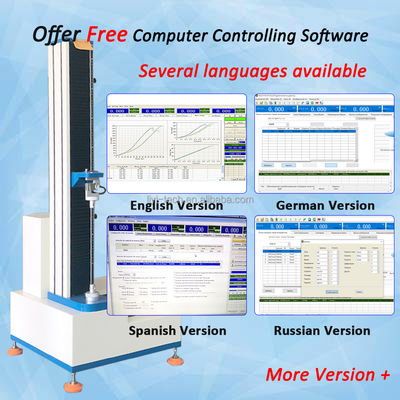

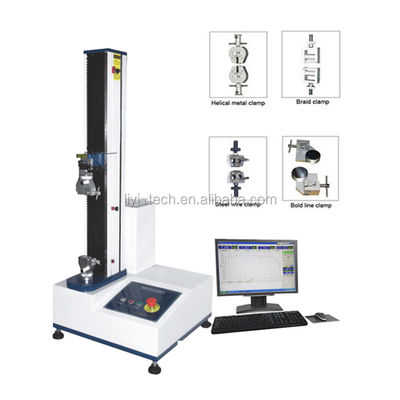

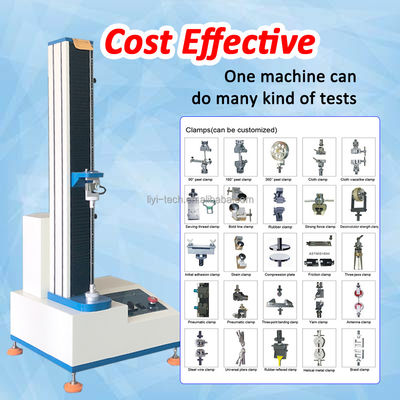

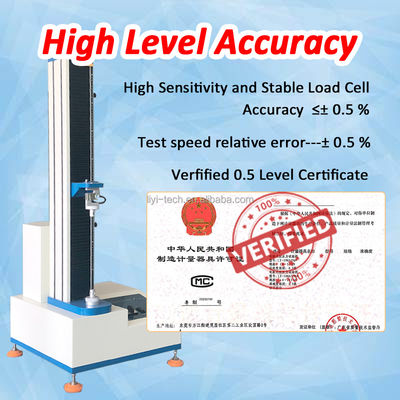

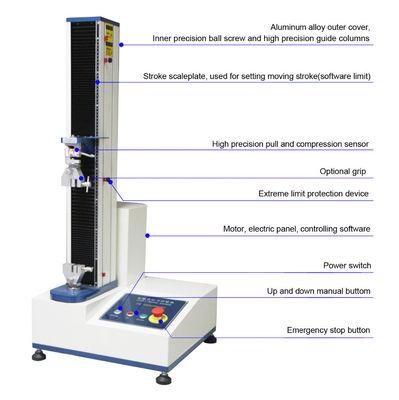

Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester 1 Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester 2 Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester 3 Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester 4 Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester 5 Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester 6
Company Profile
Dongguan Liyi Environmental Technology Co., Ltd is a high technology supported production-oriented enterprise specializing in developing, manufacturing, and marketing various environmental testing equipment. With advanced technology, experienced technical management personnel, and efficient professional service staff, we maintain fine quality management and a perfect after-sales service system.
Our production base is located in Dongguan, Guangdong province, China. In 2005, we established an office in Kunshan, Jiangsu province to better serve customers in Eastern China. Liyi serves customers from more than 150 countries and regions, collaborating with dealers worldwide to offer superior service.
Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester 7
Frequently Asked Questions
1. Are you the manufacturer? Do you offer after-sales service? What is the warranty policy?
Yes, we are one of the largest professional manufacturers of testing equipment in China. Every machine purchased from our factory comes with a 12-month warranty after shipment. We offer 12 months of free maintenance, with an additional 2-month extension to account for sea transportation time. If your machine encounters issues, you can contact us via email or phone, and we will provide solutions within 24 to 48 hours.
2. What is the delivery time?
For standard machines in stock, delivery is immediate. For out-of-stock standard machines, delivery typically takes 15-20 working days after deposit receipt. We can make special arrangements for urgent orders.
3. Do you accept customization and OEM services?
Yes, we offer both standard and customized machines according to your requirements. We can also place your logo on the equipment (OEM/ODM service).
4. How do I install and use the machine?
We provide English operation videos via email after purchase. Most machines are shipped fully assembled - you only need to connect the power cable to begin use. If necessary, we can assist with on-site installation.
